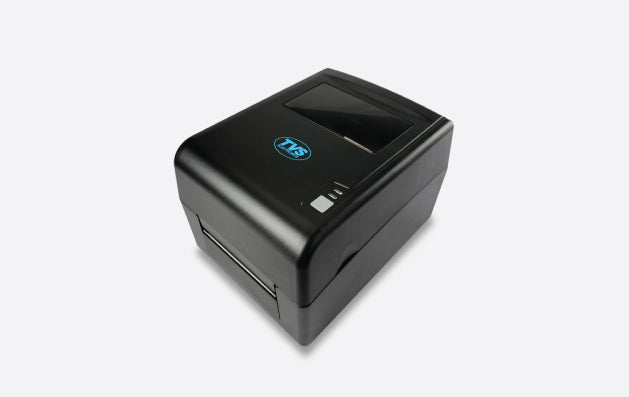

LP 46 Dlite Barcode Printer is an advanced, user-friendly solution for all your high-resolution label and barcode printing needs. It is designed for convenience and efficiency, making it perfect for various industries such as manufacturing, warehousing, shipping, small offices, and retail. The printer’s space-saving design, quick installation process, and transparent window for easy monitoring make it an ideal choice for businesses looking to streamline their printing operations. With the USB interface, increased storage capacity, and high ribbon capacity, LP 46 Dlite is built to handle demanding label printing tasks easily.
ADVANTAGES:
1. Compact and durable design
2. 6 Inch IPS printing speed
3. Increased storage Flash 16 MB & SDRAM 32 MB
4. Interface: Standard USB port
5. High ribbon capacity of 300 M
ADVANTAGES:
1. Compact and durable design
2. 6 Inch IPS printing speed
3. Increased storage Flash 16 MB & SDRAM 32 MB
4. Interface: Standard USB port
Paper width 118mm (Max.)
16 MB FLASH MEMORY
152mm/s(Max.) | 102mm/s(Max.)
SMALL FOOT PRINT & SMART BOX DESIGN
203 DPI HIGH RESOLUTION
| Product Specification | Details |
|---|---|
| Print Model | LP-46 Dlite |
| Printing Method | Thermal transfer |
| Resolution | 203 DPI |
| Print Width | 108mm(Max.) |
| Print Speed | 152mm/s(Max.) |
| Memory | SDRAM: 32MB, Flash:16MB |
| Sensor | Photoelectric sensor |
| TPH temperature detection | Thermistor |
| TPH position detection | Microswitch |
| Interface | Standard USB port |
| CPU | 32bit RISC MCP |
| Barcodes | 1D: Code39,Code93,Codabar,Code128(Subsets A, B, and C), EAN-13,EAN-8,UPC-A,UPC-E,UP�C/EAN Extensions, Planet Code, Standard 2 of 5,Industrial 2 of 5, Interleaved 2 of 5,LOGMARS, G51 Data Bar(RSS) 2D: PDF 417,MicroPDF417,QR Code,DataMatrix,MaxiCode, GS1 Composite |
| Character enlargement/rotation | Rotate (0°, 90°, 180°, 270°) Enlarge (1-10x) Vector fonts support stepless scaling |
| Character set | Built in 7 dot matrix fonts and 1 vector font Support users to download dot matrix fonts and vector fonts |
| Graphical | Binary non-format bitmap, HEX, PCX, BMP and IMG can be download to FLASH, RAM |
| Paper type | Continuous paper, marking paper, label paper, perforated paper |
| Paper width | 118mm (Max.) |
| Paper roll OD (Max.) | 127mm(5 inch) |
| Paper roll ID | 25.4mm(1 inch) /38mm(1.5 inch) |
| Paper out | Tear off/ Rewind/ Peel off (optional)/Cut (optional) |
| Paper thickness | 0.06-0.25mm |
| Ribbon length | 300m(Max.) |
| Ribbon ID | 12.7mm/25.4mm |
| Button, Indicators | 1 button,2 indicators |
| Input | 100-240V AC, 50-601-b |
| Output | 24V DC, 2.5A |
| Operation conditions | 5-45°C, 20 - 90%RH(40°C) |
| Storage conditions | -40-60°C, 20 - 93% RH(40°C) |
| Dimensions | 280mm(L) x218mm(VV)x180mm(H) |
| Weight | About 2.3kg |
